DAG Execution

RushTI builds a dependency graph (DAG) from your task file and runs tasks in parallel, starting each one as soon as its specific dependencies complete — not when an entire "level" finishes.

What Changed: Levels vs DAG

RushTI has always supported parallel execution with dependencies (using id and predecessors in optimized mode). What's new in v2.0 is how those dependencies are scheduled.

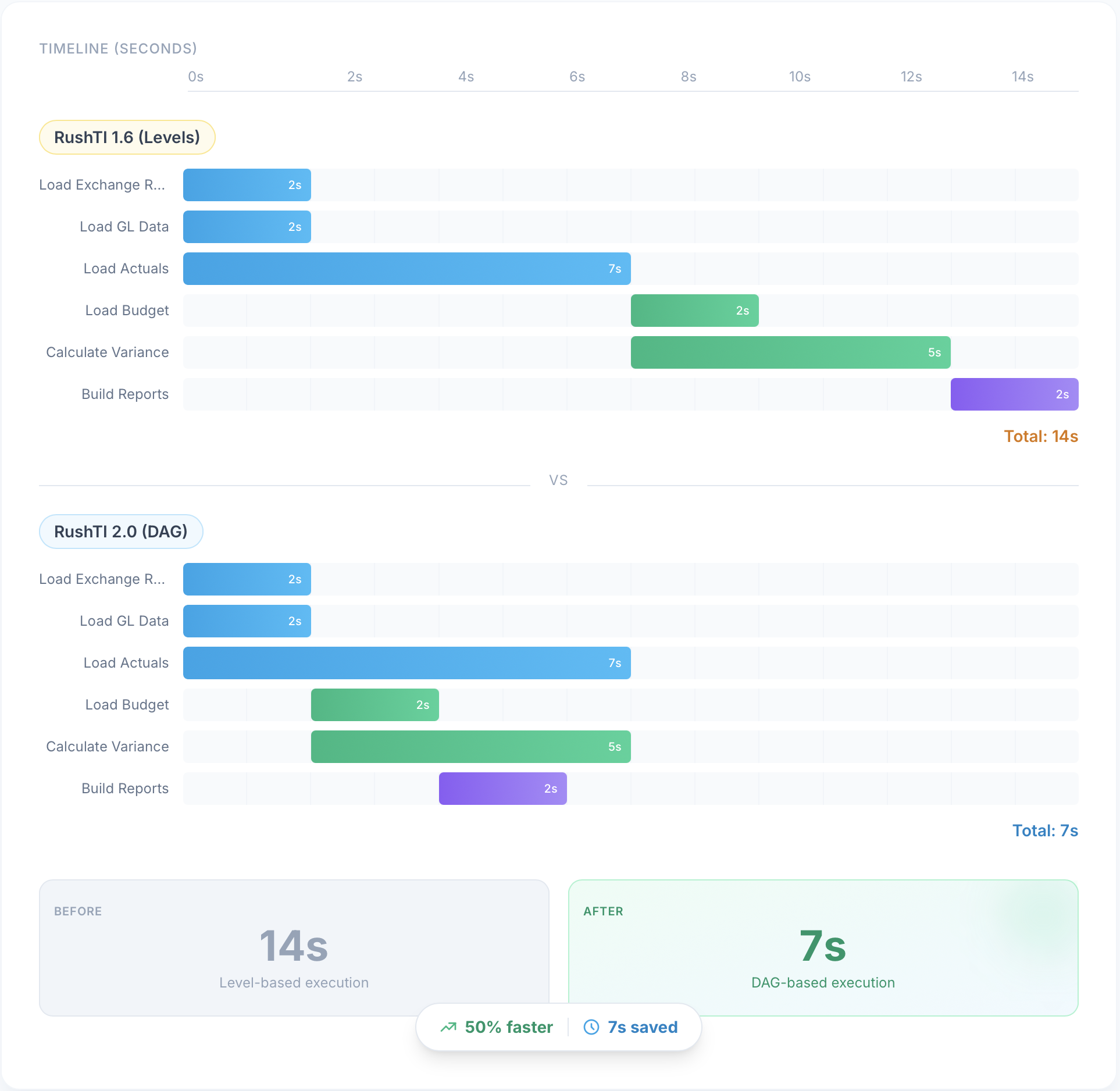

Level-based vs DAG-based scheduling
Level-based scheduling waits for entire levels to finish; DAG scheduling starts each task as soon as its specific predecessors complete.

In short: with levels, a task waits for every task in its level — even unrelated ones. With DAG, it only waits for its actual predecessors. Same task file, same id/predecessors — just smarter scheduling.

No task file changes needed

The task file format is identical. The improvement is in how RushTI executes it. You don't need to change your task files to benefit from DAG scheduling — just upgrade to RushTI 2.0.

Working Example

Here is the finance-close.json sample that ships with RushTI. It defines 13 tasks across five stages: extract, transform, consolidate, report, and notify.

DAG visualization
The finance-close sample visualized as a DAG. Each node is a TI process; arrows show dependencies. Stages are color-coded.
# Run it
rushti run --tasks docs/samples/finance-close.json --max-workers 8

# Visualize the DAG before running
rushti tasks visualize --tasks docs/samples/finance-close.json --output finance-close.html

When you run this workflow, RushTI starts all four extract tasks in parallel. As each extract finishes, its dependent transform task becomes ready immediately — no waiting for the other extracts.

How to Define Dependencies

Each task has an id (use integers) and an optional predecessors array:

{
  "version": "2.0",
  "metadata": { "workflow": "my-workflow" },
  "tasks": [
    {
      "id": "1",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "2" }
    },
    {
      "id": "2",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "5" }
    },
    {
      "id": "3",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "4" },
      "predecessors": ["1", "2"]
    }
  ]
}

Use id= and predecessors= fields. Separate multiple predecessors with commas:

id="1" predecessors="" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=2
id="2" predecessors="" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=5
id="3" predecessors="1,2" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=4

What Happens at Runtime

  1. Parse and validate — Load the task file, check for missing fields, duplicate IDs, and invalid predecessor references.
  2. Build the graph — Create a directed acyclic graph from the predecessors relationships.
  3. Detect cycles — Verify there are no circular dependencies (A→B→A).
  4. Queue root tasks — Tasks with no predecessors are immediately ready to run.
  5. Execute in parallel — Start ready tasks up to the max_workers limit.
  6. Unlock successors — As each task completes, check if any successors now have all predecessors done. If so, queue them.
  7. Repeat — Continue until all tasks are done or failures block remaining work.

Failure Handling

Default Behavior

By default, a task runs even if one of its predecessors failed. This is useful when downstream tasks can still produce partial results or when you want logging tasks to always run.

Strict Mode

Set require_predecessor_success to skip a task when any predecessor fails:

{
  "id": "5",
  "instance": "tm1srv01",
  "process": "}bedrock.server.wait",
  "parameters": { "pWaitSec": "2" },
  "predecessors": ["3", "4"],
  "require_predecessor_success": true
}

Use Strict Mode for Financial Workflows

In a financial close, you typically don't want to consolidate if a regional extract failed. Set require_predecessor_success: true on downstream tasks to prevent calculations on incomplete data.

Visualize Your DAG

Before running a workflow, generate a visual diagram to verify your dependency structure:

rushti tasks visualize --tasks my-tasks.json --output dag.html

Open the HTML file in any browser to see an interactive graph with:

  • Tasks as nodes, color-coded by stage
  • Arrows showing dependency flow
  • Click a node to see task details (instance, process, parameters)
  • Search and filter by task ID or process name

Validate Before Running

Check for structural problems without connecting to TM1:

rushti tasks validate --tasks my-tasks.json --skip-tm1-check

This catches: circular dependencies, missing predecessor references, duplicate task IDs, and missing required fields.

Configuration

These settings control DAG execution behavior:

Setting Where Default Description
max_workers CLI / JSON / settings.ini 4 Maximum parallel tasks
retries CLI / JSON / settings.ini 0 Retry count for failed tasks
require_predecessor_success Per task false Skip task if any predecessor failed
safe_retry Per task false Mark TI process as idempotent — RushTI will retry on connection loss
timeout Per task (none) Max seconds before task is considered timed out
cancel_at_timeout Per task false Cancel the TI process on the TM1 server when it times out
# config/settings.ini
[defaults]
max_workers = 8
retries = 2

safe_retry

When safe_retry is true, RushTI assumes the TI process is idempotent (safe to run again without side effects). If the TM1 connection is lost during execution, RushTI will automatically retry the task instead of marking it as failed. Useful for read-only extracts or processes with built-in duplicate handling.

Settings are resolved in priority order: CLI arguments > JSON task file settings > settings.ini > built-in defaults.
