Task File Basics

In the Quick Start you created TXT task files and ran them. RushTI supports three ways to define tasks — pick the one that fits your workflow.

TXT Files

TXT files are the simplest way to get started. Each line is a task, and you have two modes:

Tasks run in groups separated by wait. All tasks in a group run in parallel, then RushTI waits for the entire group to finish before starting the next.

instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=2
instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=5
wait
instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=4
instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=3

Each task gets an id and lists which tasks must finish first via predecessors. No more wait — tasks start as soon as their specific dependencies are done.

id="1" predecessors="" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=2
id="2" predecessors="" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=5
id="3" predecessors="2" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=4
id="4" predecessors="1,3" instance="tm1srv01" process="}bedrock.server.wait" pWaitSec=3

Use integer IDs

Always use integers ("1", "2", "3", ...) for task IDs. This keeps things simple and is required if you plan to use expandable parameters with MDX expressions.

TM1 Cube

Instead of managing task files on disk, you can store task definitions directly in a TM1 cube. This lets TM1 administrators update workflows from Architect, Perspectives, or PAW — no file editing required.

Set Up

Run the build command to create the required cube and dimensions:

rushti build --tm1-instance tm1srv01

This creates a rushti cube with dimensions for task file IDs, task IDs, run IDs, and measures (instance, process, parameters, predecessors, status, duration, etc.). It also loads two sample workflows so you can test immediately.

Define Tasks in the Cube

Open the rushti cube in Architect or PAW. With rushti_run_id = "Input", enter your task definitions:

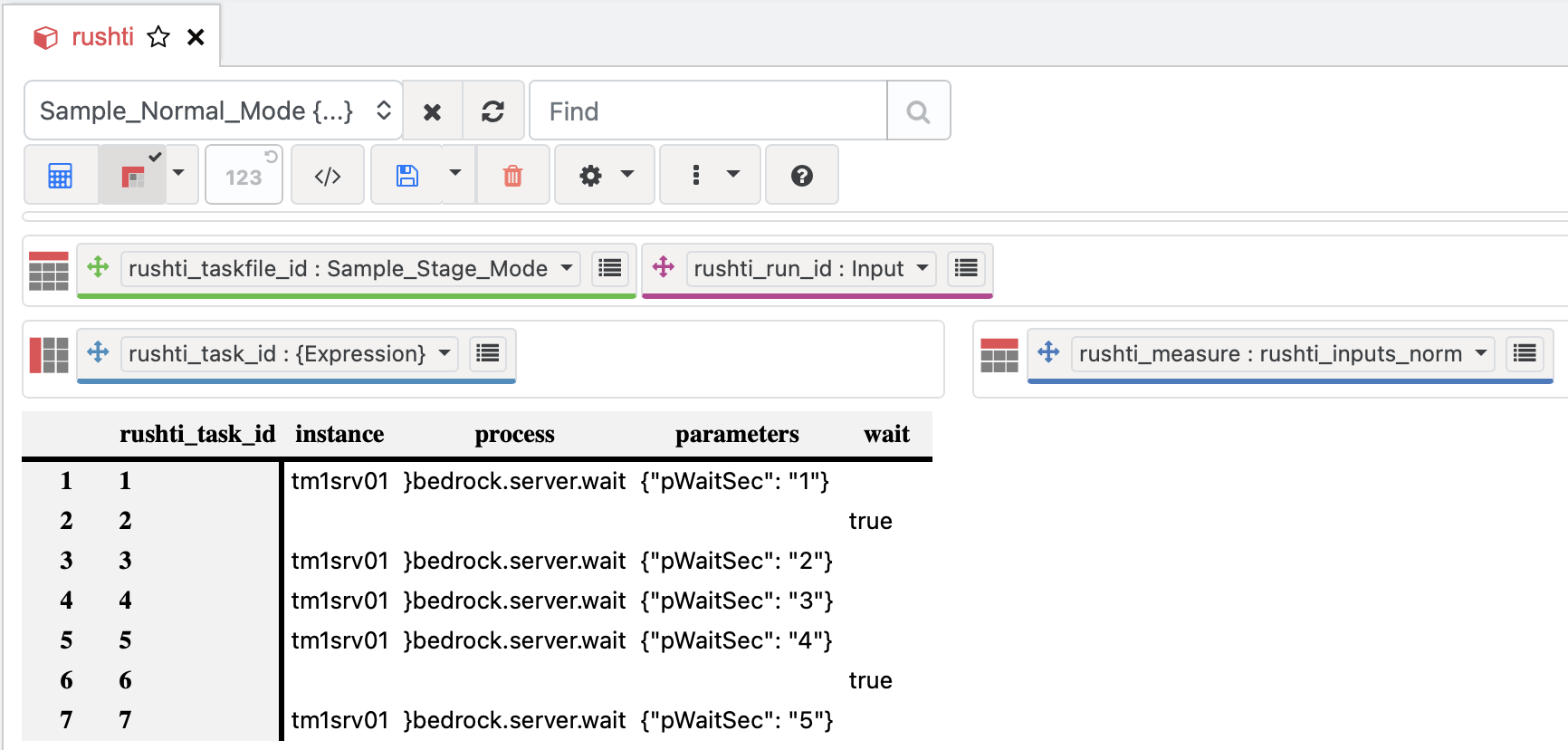

TM1 cube input view
Task definitions in the rushti cube — each row defines one task

Each task is defined by writing values to these measures:

Measure Description
instance TM1 server name (must match a [section] in config.ini)
process TI process name to execute
parameters JSON string, e.g. {"pYear": "2026", "pRegion": "All"}
predecessors Comma-separated task IDs, e.g. 1,3
stage Optional stage name for grouping

Run Tasks from the Cube

rushti run --tm1-instance tm1srv01 --workflow daily-refresh --max-workers 4

RushTI reads the task definitions from the cube, builds the DAG, and executes — exactly like running from a file.

View Results

When result pushing is enabled, RushTI writes execution results back to the same cube. Each run gets its own rushti_run_id element (e.g., 20260209_143022), so you can see the full execution history:

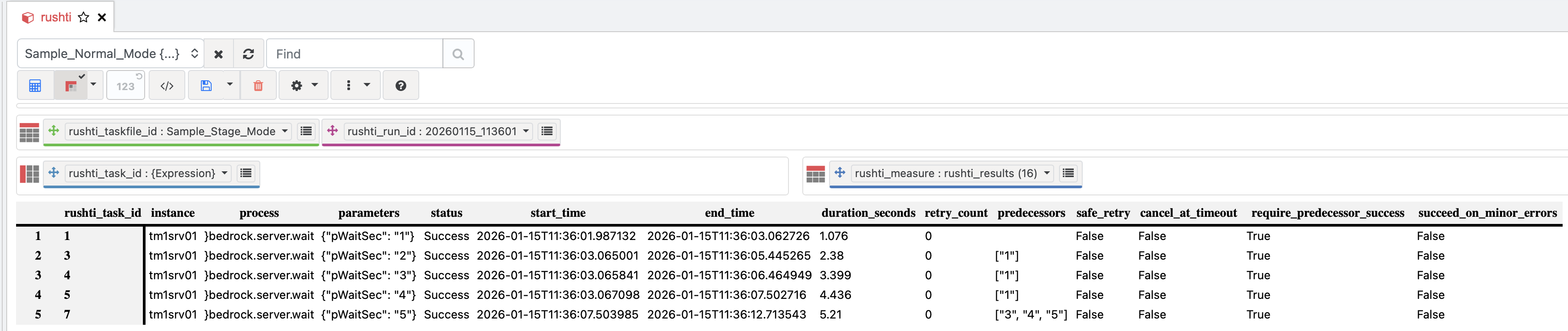

TM1 cube results view
Execution results in the rushti cube — status, duration, errors per task

See TM1 Integration for the full setup guide, including settings configuration and building dashboards in PAW.

JSON Files

JSON is RushTI's native format — internally, all TXT files are converted to JSON before execution. Use JSON when you need:

  • Embedded settings — override optimization_algorithm, logging, or retry behavior per task file
  • Rich metadata — workflow (required for statistics, optimization, and TM1 integration)
  • Per-task options — timeouts, cancel_at_timeout, safe_retry, require_predecessor_success
  • Stages — group tasks into logical phases
{
  "version": "2.0",
  "metadata": {
    "workflow": "my-tasks"
  },
  "tasks": [
    {
      "id": "1",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "2" }
    },
    {
      "id": "2",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "5" }
    },
    {
      "id": "3",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "4" },
      "predecessors": ["2"]
    },
    {
      "id": "4",
      "instance": "tm1srv01",
      "process": "}bedrock.server.wait",
      "parameters": { "pWaitSec": "3" },
      "predecessors": ["1", "3"]
    }
  ]
}

Key fields:

Field Required Description
id Yes Unique task identifier — use integers ("1", "2", etc.)
instance Yes TM1 server name (must match a [section] in config.ini)
process Yes TI process name to execute
parameters No Process parameters as key-value pairs
predecessors No List of task IDs that must complete before this task starts

JSON is recommended when you want to customize

For quick runs and simple workflows, TXT files work great. Switch to JSON when you need metadata, embedded settings, stages, timeouts, or any of the advanced features covered in Advanced Task Files.

Run a JSON task file the same way:

rushti run --tasks my-tasks.json --max-workers 4

Which Format Should I Use?

TXT TM1 Cube JSON
Best for Quick tests, simple workflows Teams managing tasks in PA Workflows using advanced features
Dependencies wait groups or id/predecessors predecessors measure predecessors array
Settings CLI flags or settings.ini only CLI flags or settings.ini only Embedded in file + CLI + settings.ini
Metadata None Defined by cube structure workflow, stages, per-task options
Advanced features Timeouts, stages, expandable params

Sample Files

Complete sample task files are available in the docs/samples/ directory:

File Description
daily-refresh.txt Simple 6-task workflow in TXT (normal mode with wait)
daily-refresh-dag.txt Same workflow in TXT (optimized mode with id/predecessors)
daily-refresh.json Same workflow in JSON format
finance-close.json Complex 13-task multi-stage pipeline
